ED116 SMD Incremental Rotary Encoder For Car Navigation Thickness 4.5mm

Product Categories

Ningbo Anyo Import & Export Co., Ltd.

Contact Now

Name: ED116 SMD Incremental Rotary Encoder For Car Navigation Thickness 45mm
Brand: ANYO
Price: 1 USD

Brand Name : ANYO

Model Number : ED116

Place of Origin : CHINA

MOQ : 1000pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 30000 per day

Delivery Time : 8-10 work days

Packaging Details : 20000pcs/carton, 13kg, 40*30*25cm

Other name : SMD Encoder

Operating temp. : -30℃~80℃

No. of pulses : 15/20

Total Rotational Angle : 360°

Voltage current : 2.5mA

Rated voltage : DC5V

Contact Now

11mm SMD Incremental Rotary Encoder For Car Navigatio Thickness 4.5mm

Electrical specifications:

Items	Specification	Condition
Voltage rating	DC 5V
Maximum operating current (resistive load)	Each lead: 0.5mA (Max. 5mA; Min 0.5mA) Common lead: 1mA (Max. 10mA; Min 0.5mA)
Insulation resistance	100MΩ Min.	At DC 250V
Dielectric strength	No subversion on insulating material	AC300V (50~60Hz) 1 minute
Output signal	Refer to attached drawing
Number of pulses	15/20	Output total pulses of rotate one circle(360°).
Phase difference	Td=T/4±T/6	In no detent circumstances

Mechanical Characteristics:

Items	Specification	Condition
Rotational torque(gf.cm)	20~150gf.cm
Push-pull strength	At the shaft end, a static load of 8 Kg is applied in the axial direction to push and pull each for 10 seconds	After soldering of the PC board
Total rotational angle	360°
Number of detent	20/30	Rotate a week(360°) position number

Durability:

Items	Specifications	Condition
Rotational life	Encoder shall be operated 30,000 cycles without load	16~20 times per minute
Operating temperature	-30℃~80℃

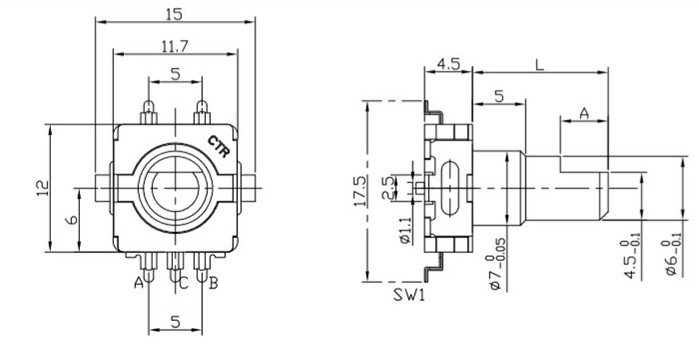

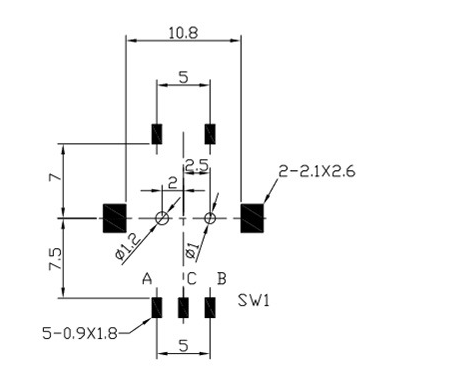

Dimension:

ED116 SMD Incremental Rotary Encoder For Car Navigation Thickness 4.5mm

Product Tags:

rotary switch potentiometer
