XLR Female Small Electrical Connectors Rear Mounting Horizontal Combo Connector

Name: XLR Female Small Electrical Connectors Rear Mounting Horizontal Combo Connector
Brand: FENFA
Price: 1 USD

XLR Female Small Electrical Connectors Rear Mounting Horizontal Combo Connector Manufactures

Brand Name : FENFA

Model Number : F169

Place of Origin : CHINA

MOQ : 2000pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100000 per day

Delivery Time : 8-10 work days

Packaging Details : Customized carton

Other name : XLR connector

Connection type : Combo

Gender : Female

Contact resistance : < 10 mΩ (XLR)

Temperature : -30~80℃

Insertion force : ≤25N

Contact Now

XLR Female Receptacle With 1/4" Stereo Jack Horizontal Combo Connector

Description:

A combined XLR female 3-pin receptacle and 1/4" phone jack in one. This unique connector accepts balanced and line inputs or instrument inputs - all in one unit of panel space.

Features:

• Combined XLR receptacle and 1/4" phone jack

• Saves rack space by combining 2 connectors in one housing

• Balanced or line inputs in one XLR shell

• Very low conductor capacitance, therefore suitable for digital audio

Electrical:

Contact resistance	< 10 mΩ (XLR)
Contact resistance	< 20 mΩ (jack & switching contacts)
Dielectric strength	1.5KVDC
Insulation resistance	>10MΩ(initial)
Rated current per contact	7.5 A (XLR)
Rated current per contact	7.5A (Jack)
Rated voltage	<50V
Switching contacts	3

Mechanical:

Insertion force	≤ 25 N
Withdrawal force	≤ 25 N
Lifetime	>1000 mating cycles
Panel thickness	Max. 7mm 0.27"
Mounting direction	Rear mounting

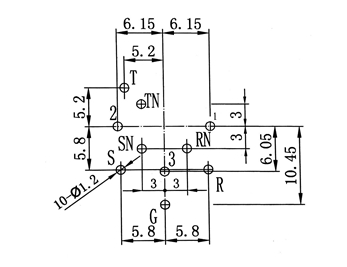

Dimension: (mm)

XLR Female Small Electrical Connectors Rear Mounting Horizontal Combo Connector
