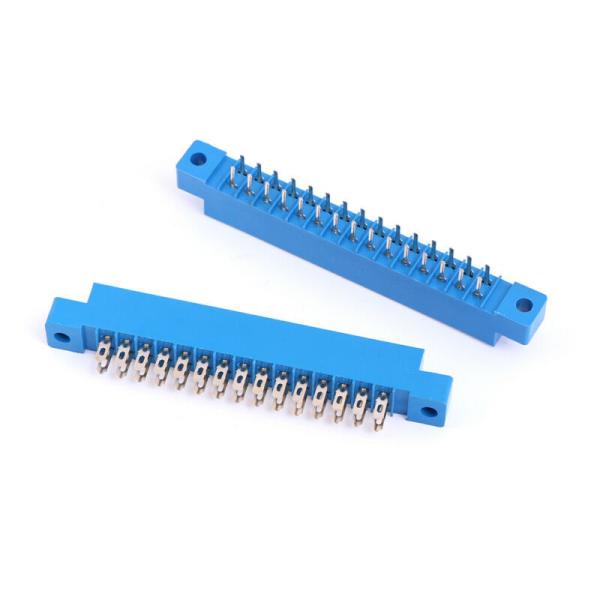

PCB Mounted Small Electrical Connectors Card Edge Connector Solder Type

Name: PCB Mounted Small Electrical Connectors Card Edge Connector Solder Type
Brand: ANYO
Price: 1 USD

PCB Mounted Small Electrical Connectors Card Edge Connector Solder Type Manufactures

Brand Name : ANYO

Model Number : AY1006

Place of Origin : CHINA

MOQ : 2000pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100000 per day

Delivery Time : 8-10 work days

Packaging Details : Customized carton

Other name : Card Edge Connector

Current rating : 5A

Insulator Resistance : 5000MΩ min. at DC500V

Contact Resistance : 20mΩ max. at DC100mA

Temperature : -55~105℃

Contact plating : Au or Tin

Contact Now

3.96MM PCB Mounted Card Edge Connector Solder Type And DIP Type

Description:

Card edge connector is the portion of a printed circuit board (PCB) consisting of traces leading to the edge of the board that are intended to plug into a matching socket.

Specification:

Material	Housing: 30% glass filled PBT UL94-0 Contacts: Phosphor bronze
Current rating	5A
Insulator resistance	5000MΩ min. at DC500V
Contact resistance	20mΩ max. at DC100mA
Temperature	-55~105℃

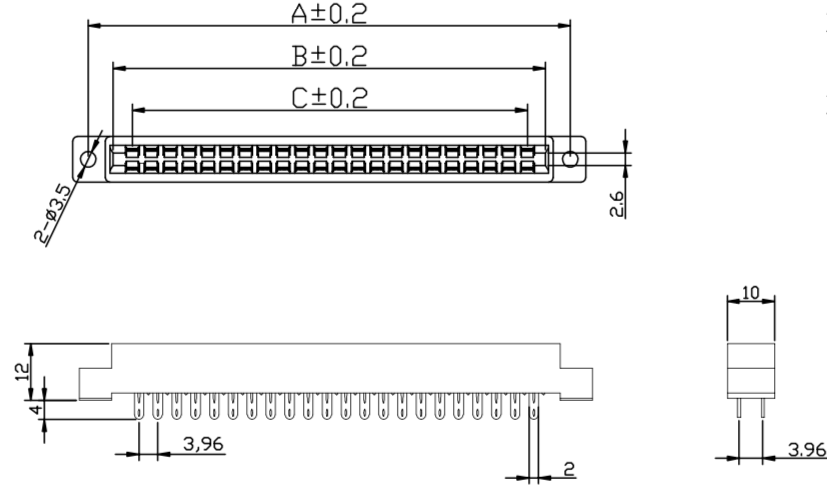

Dimension: (mm)

Position	A	B	C
8	30.34	20.18	11.88
12	38.26	28.10	19.80
16	46.18	36.02	27.72
20	54.10	43.94	35.64
24	62.02	51.86	43.56
30	73.90	63.74	55.44
36	85.78	75.62	67.32
44	101.62	91.46	83.16
56	125.38	115.22	106.92
72	157.06	146.9	138.60
